eos
dedicated final test manipulator
key features

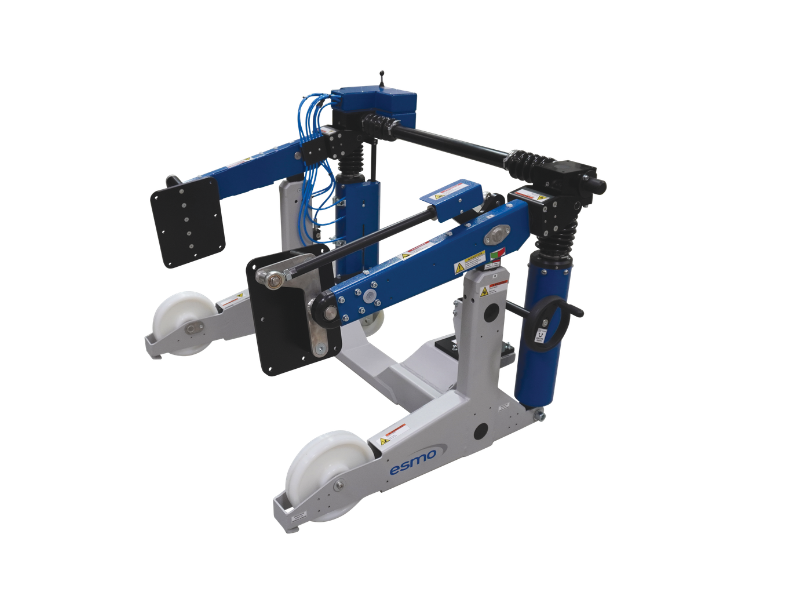

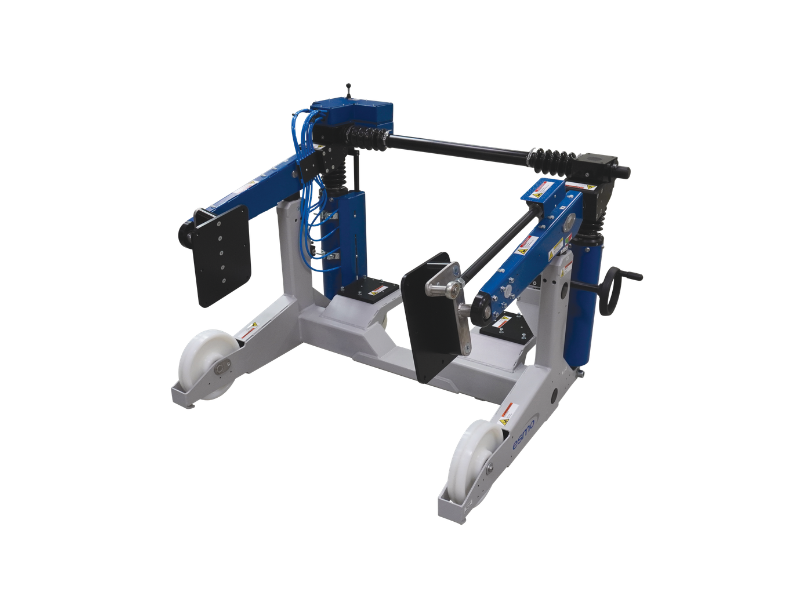

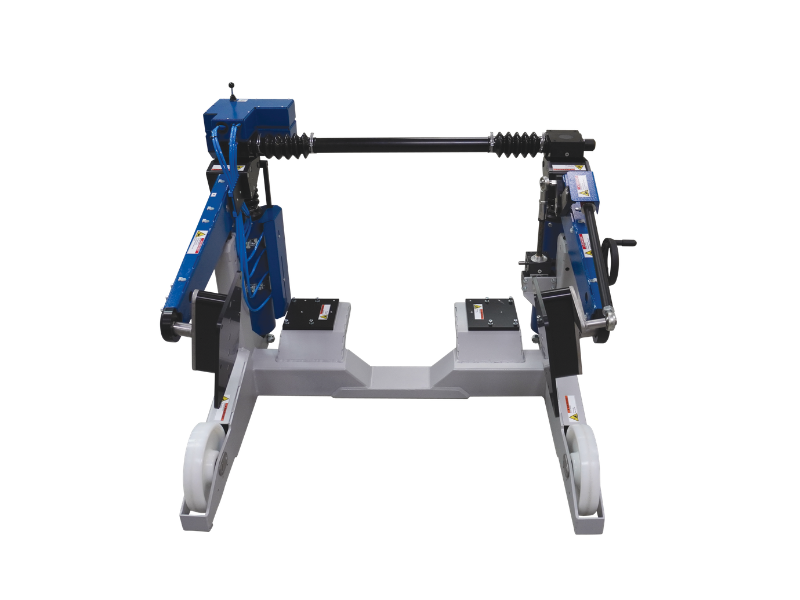

eos dedicated final test manipulator for DUT-up docking

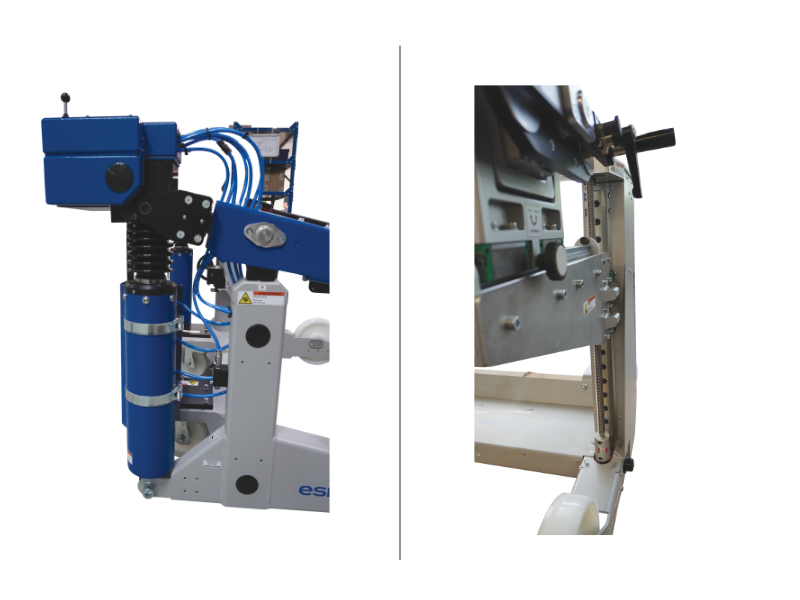

The eos is designed for dedicated final test applications with DUT-up docking. It provides vertical, lateral and rotational adjustment within application-specific ranges. The vertical drive is available as a tactile version or, optionally, as a power-assisted version.
- Dedicated solution for DUT-up docking
- Cost-effective solution for dedicated DUT-up docking
- Designed for applications requiring a minimum footprint
- Tactile vertical drive
- Optional power-assisted vertical drive
- Vertical travel of 250 mm / 9.8 in
- Lateral adjustment in the y-direction of ±15 mm / ±0.6 in
- Tumble: 90° ±3°
- Twist: ±3°
- Theta adjustment: ±3°
- Load capacity: 400 kg / 882 lbs
Application-specific integration
The following aspects can be defined together with esmo semicon during the technical design:
- docking geometry and interface requirements
- available installation and operating space
- load distribution and centre of gravity
- required adjustment ranges
- preferred version of the vertical drive
- customer-specific fixtures or adapters, where applicable
The applicable adjustment ranges are listed in the technical specifications above. The exact assignment of the adjustment axes to the cart and the overall system is determined during the application-specific technical design.
specifications
weight
| unloaded | loaded | |
| load capacity | 400 kg / 882 lbs | 400 kg / 882 lbs |
| system weight | 275 kg / 606 lbs | 675 kg / 1,488 lbs |
linear
| vertical travel (z-axis) | 250 mm (9.8") |
| side-to-side (y-axis) | ± 15 mm (0.6") |
rotation
| tumble | 90° ± 3° |
| twist | ± 3° |
| theta adjustment | ± 3° |
