Modular Standard Testhead Housing

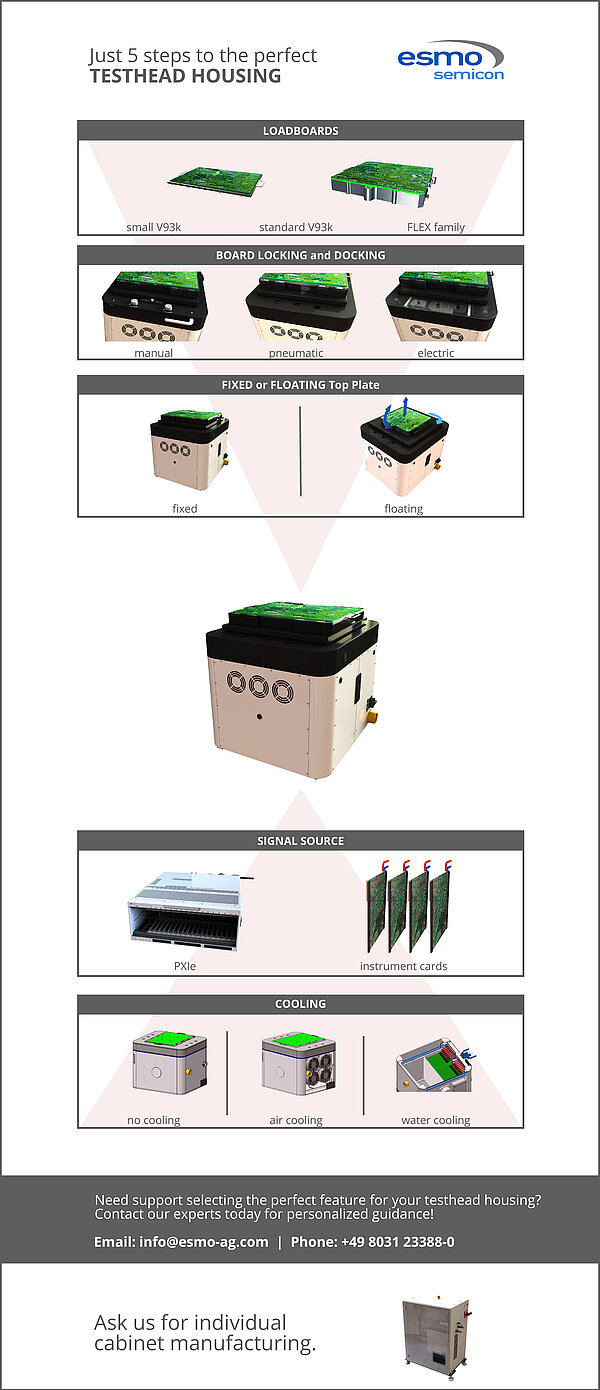

One housing – endless configurations (in just 5 steps)
Need support selecting the perfect feature for your testhead housing?
Contact our experts today for personalized guidance!
STEP 1:
Choose your Loadboard Design
based on required applications space, stability, test purpose etc.
- small V93k style loadboard
- standard V93k style loadboard
- FLEX-family loadboards
STEP 2:
Choose your Board Locking and Docking
based on your operators skill level and setup purpose
- mechanical docking
- pneumatic docking
- electric docking
STEP 3:
Choose your Top Plate Fixation
based on required setup environment
- floatened top plate
- not floatened top plate
- direct-dock
STEP 4:
Choose your Signal Source
- PXIe equipment
- instrument cards
STEP 5:
Choose your Cooling
- no cooling
- air cooling
- water cooling
Optional:
Cabinet Manufacturing
Ask us for individual cabinet manufacturing.
Technical Data:
Standard Testhead Housing
Dimensions:
- 737 x 830 x 642.5 mm (w x d x h)
- Dimensions can be customized (according to customer specifications and common testhead sizes).
Prober setups
- TEL
- Accretech / TSK
- Semics
- Electroglas
- Semishare
- Sidea
- CCTech ( Changchuan Technologies)
- for 300mm (12”) probers
- on 200mm “8” probers, only rear docking orientation
Handler Setups
- Advantest
- esmo
- Chang Chuan
- Rasco / Multitest / Delta / Cohu
- Hontech
- MCT
- Seiko
- Epson
- SPEA
