X-change cart
semi-automated DIB exchange system

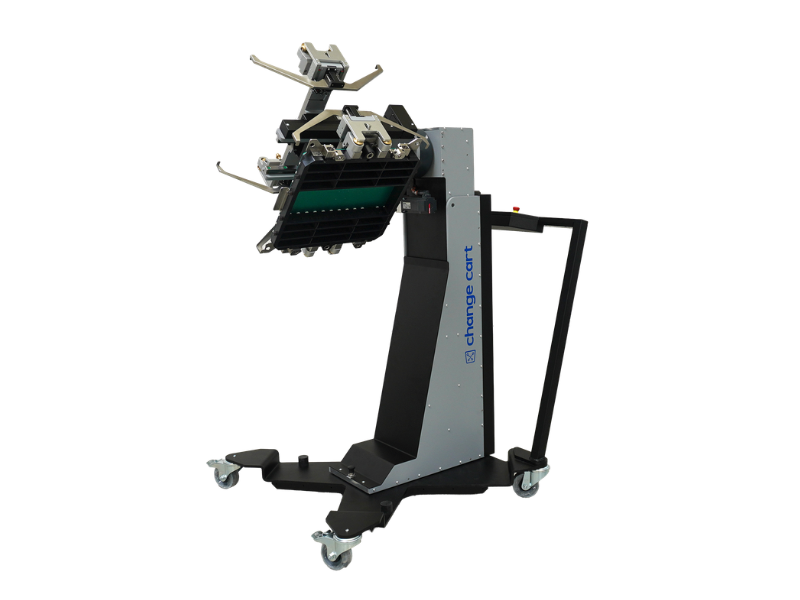

esmo x-change cart – front view with mounted Device Interface Board (DIB) on ESD-safe gripper head

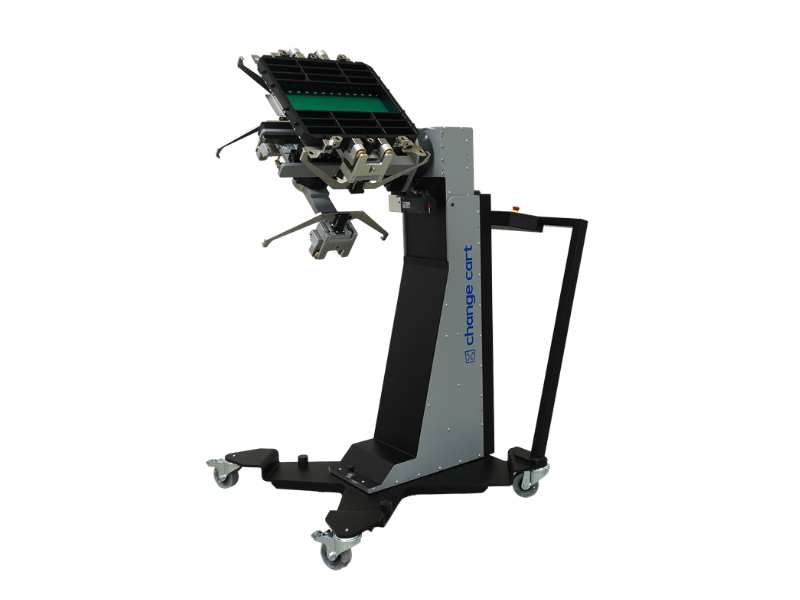

esmo x-change cart – side view with dual gripper positions for simultaneous load board transport

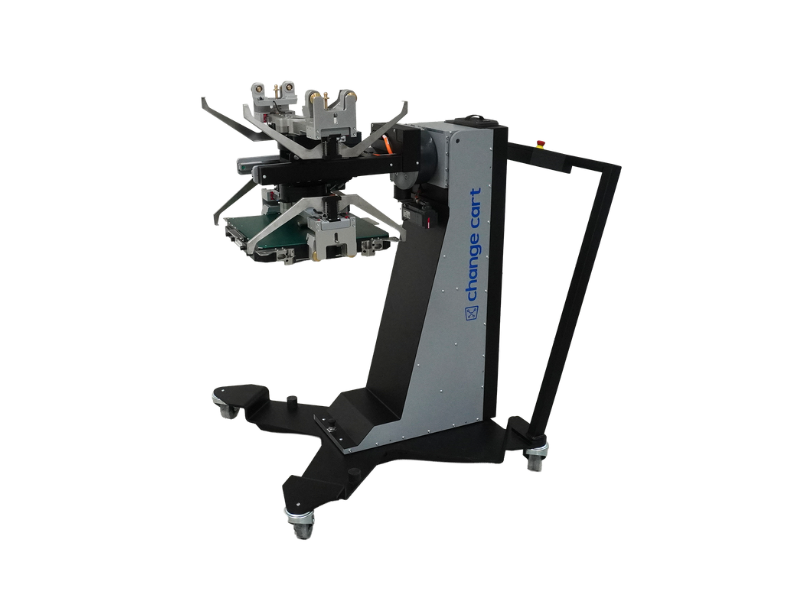

esmo x-change cart – front view with two load board positions for rapid board changeover

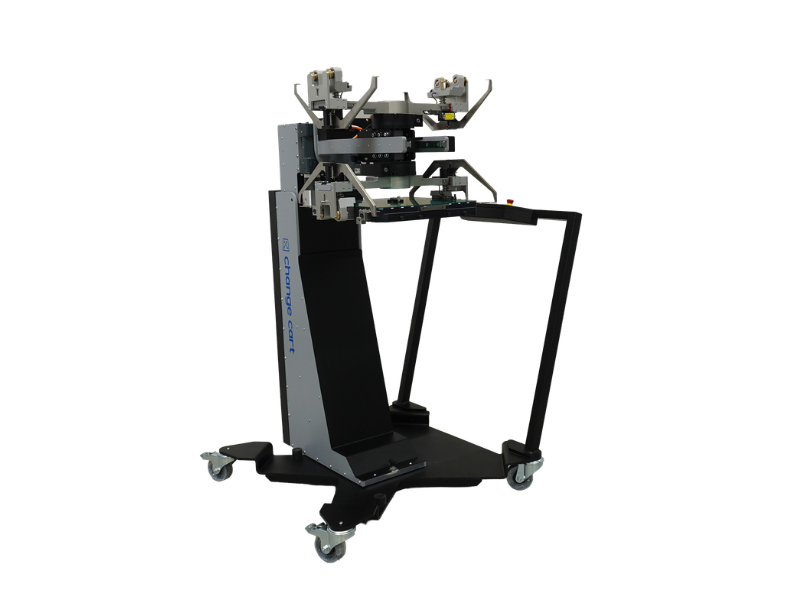

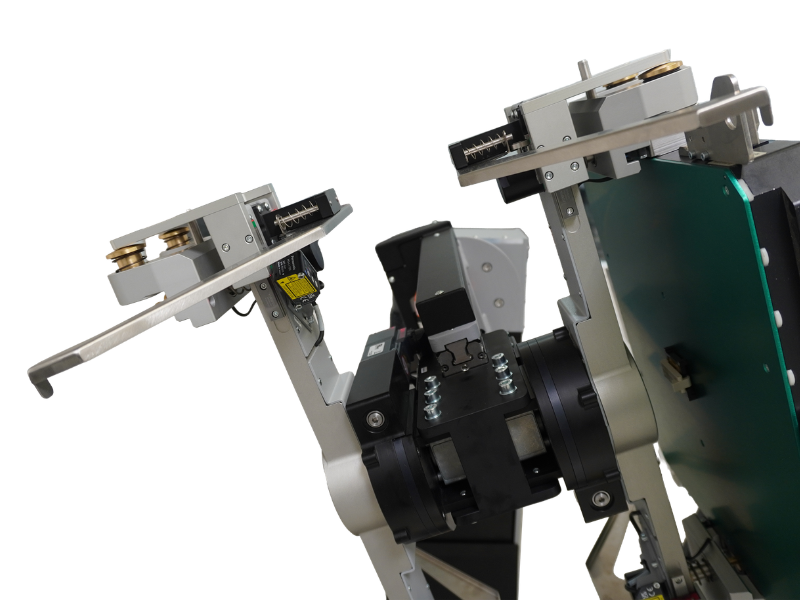

esmo x-change cart – gripper head detail view with 180° rotation mechanism and spring-loaded guide
esmo x-change cart – gripper head detail view with 180° rotation mechanism and spring-loaded guide

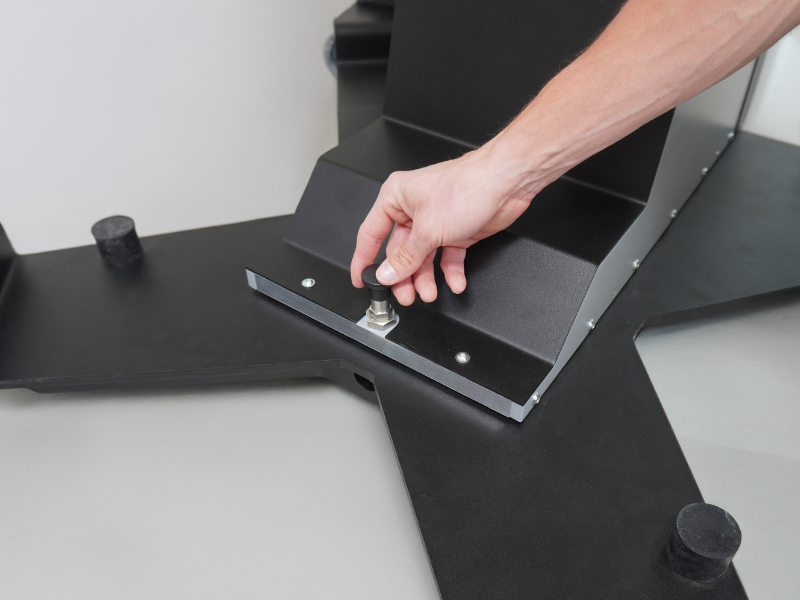

esmo x-change cart – safety hand-brake detail view on cart chassis
esmo x-change cart – front view with mounted Device Interface Board (DIB) on ESD-safe gripper head
esmo x-change cart – side view with dual gripper positions for simultaneous load board transport
esmo x-change cart – front view with two load board positions for rapid board changeover
esmo x-change cart – gripper head detail view with 180° rotation mechanism and spring-loaded guide
esmo x-change cart – gripper head detail view with 180° rotation mechanism and spring-loaded guide
esmo x-change cart – safety hand-brake detail view on cart chassis
key features

The esmo Xx-change cart is a semi-automated Device Interface Board (DIB) exchange system designed for high-mix semiconductor test environments. It enables a single operator to complete a full load board changeover in under one minute, reducing changeover time, minimizing operator effort, and eliminating the risk of manual handling errors.

The modular design supports integration into existing multi-vendor ATE setups without reconfiguration and provides an upgrade path toward fully automated test floor operations via AGV or AMR mounting.


  • Modular DIB exchange system for reliable, error-free board loading and unloading
  • Single-operator operation – complete board change in under one minute
  • Transports two load boards simultaneously for rapid exchange
  • Full multi-axis rotation: ±180° at locking mechanism | ±180° Y-axis | ±90° Z-axis (tower swivel)
  • Tower swivels ±90° for use in narrow corridors and constrained test floor layouts
  • Compatible with leading ATE platforms – Teradyne, Advantest, SPEA and more
  • Interfaces with test head, prober, DIB-loader, storage rack, and maintenance workbench
  • ESD-safe gripper head construction – board protected at every point of contact
  • Spring-loaded guide pins for exact cart-to-DIB positioning
  • Secure automatic locking with mechanical interlock against accidental board release
  • Pretensioned alignment feature compensates roll and pitch angle tolerances up to ±1.5°
  • Integrated HMI, sensor detection, safety hand-brake, and modular battery
  • Optional: fully automated configuration mountable on AGV or AMR
specifications
Rotation — clamp axis (locking mechanism)±180°
Rotation — Y-axis±180°
Rotation — Z-axis (tower swivel)±90°
Board capacity2 load boards simultaneously
Gripper head alignmentRoll and pitch compensation ±1.5°
Changeover time< 1 minute (single operator)
HMIIntegrated touchscreen HMI with sensor detection and safety hand-brake
Power supplyModular battery (rechargeable); charging via standard power outlets
ATE compatibilityTeradyne, Advantest, SPEA and other leading ATE platforms
InterfacesTest head | Prober | DIB-loader | Storage rack | Maintenance workbench
ESD safetyESD-safe materials throughout gripper head
